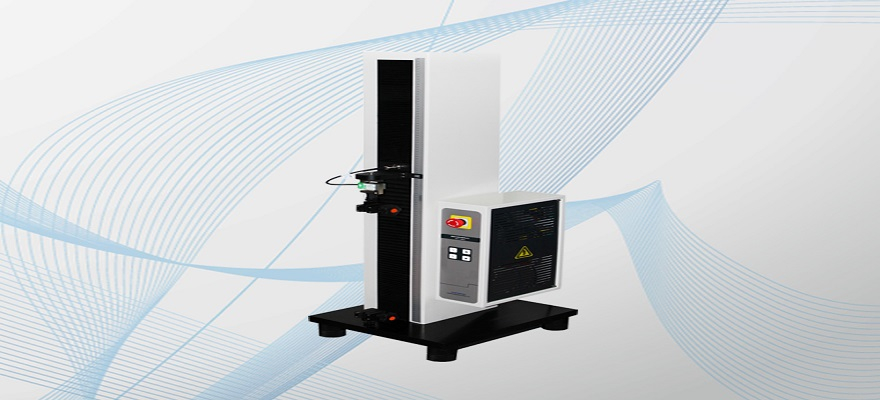

Auto Tensile Tester is suitable for various mechanical properties test like break force, elastic modulus, elongation, seal strength, T-style peeling force and strength tester, 90/180 peeling force and strength tester and so on.

Testing materials:

Plastic films, sheets, adhesive tapes, rubber, paper, medical patches, release paper, non-woven fabrics, aluminum foils, laminated films etc testing of various item.

Standards

ASTM D882, ASTM D828, ASTM E4, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, ISO 37, JIS P8113, QB/T2358, QB/T 1130…….

Main feature

1: 3 patents and 2 counts of software copyright registration.

2: Bilingually controlled by computer and embedded system.

3: Highly accurate load cell, Bi-direction test.

4: High performance servo drive.

5: Test speed can be preset freely through software.

6: Selectable load cell: 50N, 100N, 250N, 500N, 1000N.

7: Silence running, < 25db@1000.

8: ISO, ASTM standards test available and non-standard test available.

9: Electronic limit, computer preset, non-mechanical limit.

10: Overload protection, less power consumption.

11: DB9 RS232 communication port .

12: Tensilyst workstation support.

13: Tensile, break force, elastic modulus, seal strength, 90 peeling strength, 180 peeling strength test available.

14: Historical data traceable, system log.

Technical indexes
