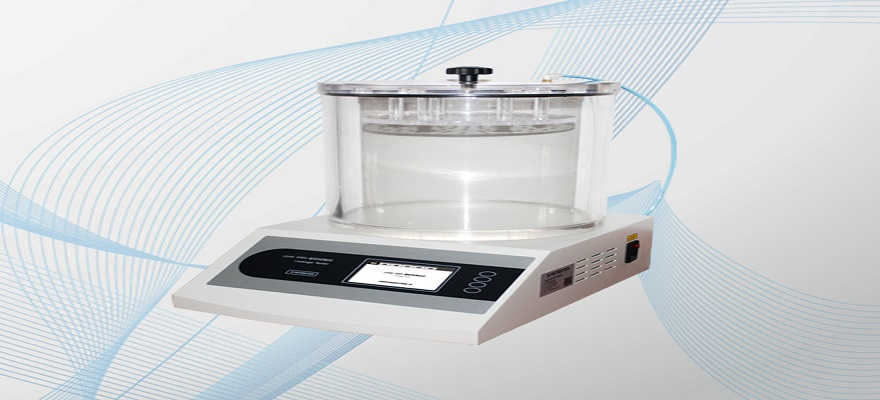

Leakage Testing Machine Application
Applies to evaluating the leakage of the various kinds of package , can ,bottle etc and widely using in food & pharmaceutical industries. LEAK-5001 tester is complied with ASTM D3078, GB/T 15171 standard etc.
Leakage Testing Machine Features:
1. Patent technology, Touch screen operation, Real color TFT LCD display.
2. High-accuracy pressure sensor inside.
3. High performance pneumatic parts inside.
4. Overload warning.
5. Designed based on various standards.
6. Low power consumption.
7. RS232 communication port.(Optional)
Leakage Testing Machine Technical indexes:
Accuracy | 0.1%FS |
Vacuum Chamber Size | Φ270mm×220 mm (H) Φ360mm×590 mm (H) (Optional) Φ460mm×330 mm (H) (Optional) Note: Other vacuum chamber size is customized. |
Gas source | 1.1MPa(provide for yourself） |
Gas interface | 6mm-diameter |
Power supply | AC 220V 50Hz |
Dimension | |
Net wt. | 12kg |
Configuration
Delivery: mainframe ,vacuum chamber
SYSTESTER is professional provider of integrated package testing solution and instruments of food and pharmaceutical industries, dedicates to cutting-edge technology research and development.
